Supermicro 1U IOT/Embedded System (SYS-110D-8C-FRAN8TP)

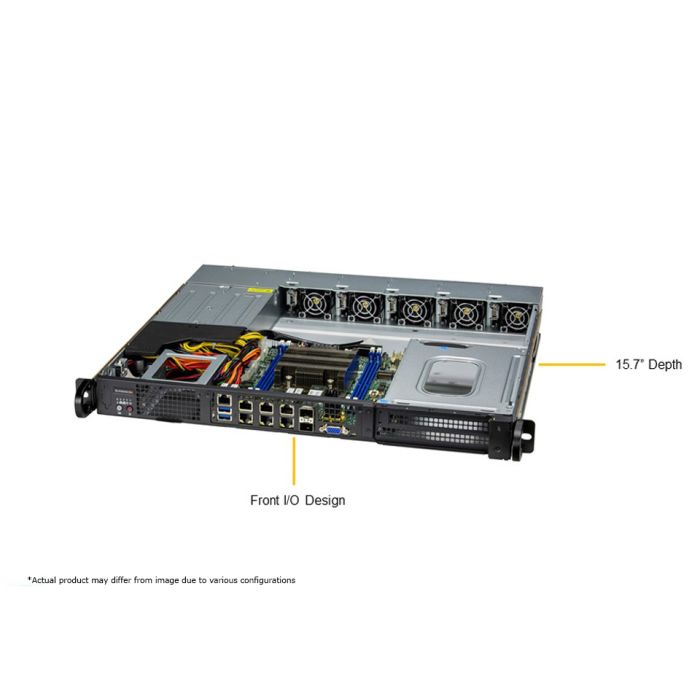

The SYS-110D-8C-FRAN8TP is a compact IOT/embedded system that comes with Intel Xeon D-2733NT processor which is packed with 8 cores, 2.10GHz, 15MB cache and 80W TDP.  This system supports up to 256GB ECC RDIMm in 4 DIMM slots. This 1U short depth system measures in at 15.7″ (D) x 17.2″ (W) x 1.7″ (H) weighing in roughly at over 18 lbs. This IOT/embedded system front network I/O ports that includes 6 RJ45 (4 1GbE & 2 10GbE) and 2 x 25GbE SFP28 ports. In addition to the network ports, this system has it’s own dedicated IPMI LAN port, 2 USB 3.0 ports, and 1 VGA port. One of the main features of this system is Intel QuickAssist Technology (QAT) which allows intensive compute workload be offloaded by CPU core onto dedicated hardware.

The SYS-110D-8C-FRAN8TP supports 1 NVMe/SATA M.2 as well as 2 internal 2.5″ SATA 3 drive bays to use for strorage. This system also supports 1 PCI-E 4.0 x16 full heigh full length slot that supporst either a GPU or can serve as an additional network card. Included in this systems are 5 hot-swappable fan which are fans to keep this system cool regardless of the different environment. Lastly, to power the entire system is a included 800W platinum level redundant power supply.
