Supermicro 1U Mainstream SuperServer (SYS-110T-M)

Supermicro’s Mainstream Application Optimized SuperServer is an optimal entry-level or volume selection for Enterprise IT managers. By choosing the exact model with just the right set of integrated features needed for their applications, customers can save significant amounts on CAPEX, while Supermicro’s energy-efficient server designs will help them save on OPEX.

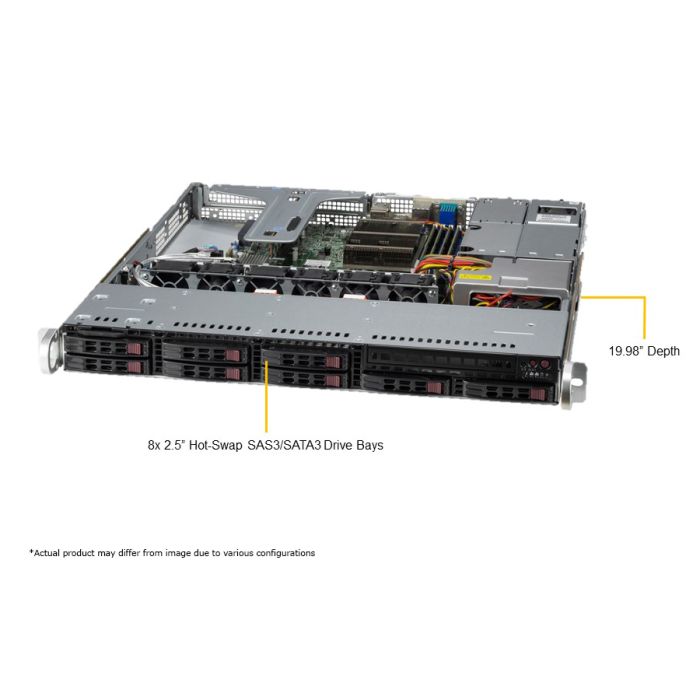

The Supermicro SYS-110T-M Mainstream SuperServer supports a single Intel® Xeon® E-2300 series processor and up to 128GB ECC UDIMM DDR4-3200 memory in 4 DIMM slots. Like other mainstream servers, the SYS-110T-M has a NVMe M.2 onboard and includes 8 hot-swap 2.5″ SATA drive bays with option to support SAS3 with an additional SAS controller.

This mainstream server has up to PCI-E slot (via included butterfly riser card) that can support 2 PCI-E x8 or 1 PCI-E x16. The SYS-110T-M has LAN that supports up to 2x RJ45 1GbE ports and 1x RJ45 dedicated IPMI port for KVM over dedicated LAN. To power the entire system, there is a 400W platinum power supply with an option of adding the 2nd power supply to support redundancy.

The Supermicro Mainstream Application Optimized product family supports a wide variety of mainstream server applications, including web/hosting applications, database processing and storage, and encoding/decoding.
