Supermicro 1U Mainstream SuperServer (SYS-510T-M)

Supermicro™’s Mainstream Application Optimized SuperServer® is an optimal entry-level or volume selection for Enterprise IT managers. By choosing the exact model with just the right set of integrated features needed for their applications, customers can save significant amounts on CAPEX, while Supermicro™s energy-efficient server designs will help them save on OPEX.

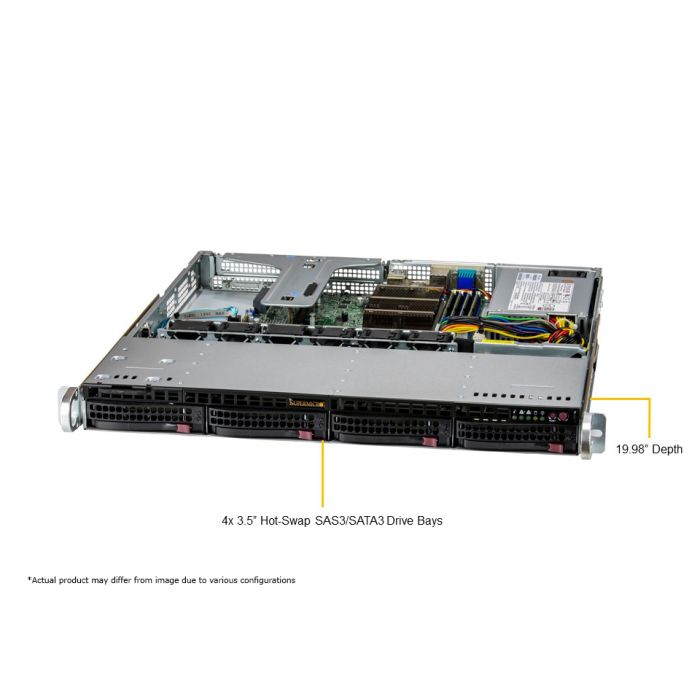

The Supermicro SYS-510T-M Mainstream SuperServer® supports a single Intel® Xeon® E-2300 series processor and up to 128GB ECC DDR4-3200 UDIMM memory in 4 DIMM slots. Like other mainstream servers, the SYS-510T-M has an NVMe M.2 onboard and includes 4 hot-swap 3.5″ SATA drive bays with the option to support SAS3 with an additional SAS controller.”

This Mainstream server is capable of using 2 PCI-E 4.0 x8 or 1 PCI-E x16 via butterfly riser expansion slots, plus an additional internal expansion slot for SAS controller. In addition, this system has LAN that supports up to 2x RJ45 1GbE ports and 1x RJ45 dedicated IPMI port for KVM over dedicated LAN. To power the entire system, there is a 350W platinum power supply with over a 94% efficiency rating.

The Supermicro Mainstream Application Optimized product family supports a wide variety of Mainstream server applications, including general-purpose, email, firewall, print, and web hosting, in many attractive and cost-effective form factors.
