Supermicro 1U WIO A+ SuperServer (AS -1014S-WTRT)

Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

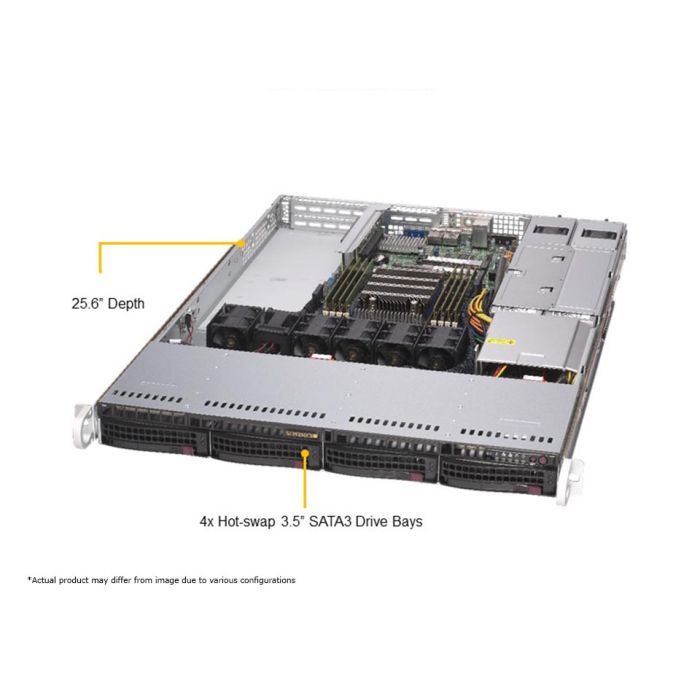

The Supermicro AS -1014S-WTRT WIO SuperServer® supports a Single AMD EPYC™ 7002/7003 Series Processor and up to 2TB DDR4-3200MHz memory in 8 DIMM slots. The AS -1014S-WTRT includes 4 hot-swappable 3.5″ SATA drive bays (2.5″ with converter drive tray) which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs). This system has 2 x 10GBase-T LAN onboard ports via Broadcom BCM57416 controller for super fast networking speeds.

The 1U UP WIO server supports up to 3 PCI-E 4.0 add-on cards (via included riser card), 2 of which support full height full length (FHFL) and 1 which is a low profile (LP) slot. To power the entire system, there is a 500W redundant platinum power supply with an over 91% efficiency rating.

Supermicro WIO SuperServers are optimized for DB processing & storage, data center application, and firewall applications.
