Supermicro IOT/Embedded System (SYS-E100-9W-H)

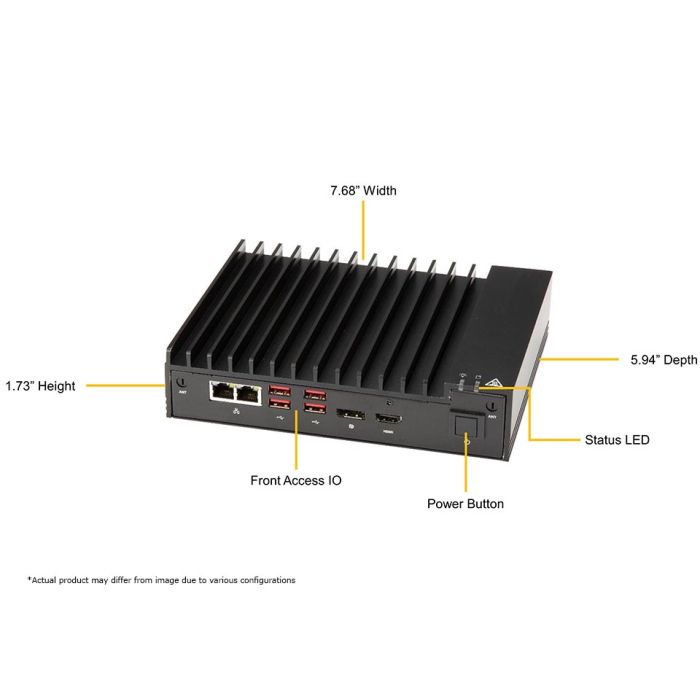

Despite its compact size, SYS-E100-9W-H is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. This fanless system fits in the most compact of spaces, measuring in at only 7.6 x 1.7 x 5.9 inches and weighing slightly over 4.5lbs. This particular IoT/embedded system is optimized for IoT gateways, smart retail/kiosks, environmental monitoring, and more.

SYS-E100-9W-H supports Intel’s 8^th generation i7-8665UE quad-core processor, up to 64GB DDR4 non-ECC SO-DIMM, and 1 x M.2 M-Key 2242/2280, E-Key 2230, B-Key 2242/2280. In addition, this system comes with dual GbE LAN ports with Intel i219LM + i210IT, 1 display port / 1 HDMI port, and 8 USB ports (4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)).

This system is designed to operate in harsh environments with operating temperatures ranging from 32°F to 122°F and non-operating temperatures of -40°F to 158°F. In addition, this particular system is compliant with both IEC 60068-2-64 and IEC 60068-2-27, so they can absorb continuous vibration and shock.

The SYS-E100-9W-H quad core system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.
